SY-1 System Shoring (시스템동바리)

Heavy-duty structural shoring system engineered with 60.5mm vertical standards and 8-hole ringlock rosette joints. Designed for massive concrete slab pours, bridge girders, and high-load civil engineering projects up to 270 kN/m².

8-Hole Rosette Ringlock Joint

Maximum Load Transfer & Structural Stability

The SY-1 Series System Shoring utilizes 60.5mm outer diameter steel pipe (wall thickness 2.6t~3.2t) paired with 8-direction rosette connection rings.

Integrated with heavy-duty U-Head Jacks and Base Jacks, SY-1 guarantees vertical alignment and prevents lateral buckling during massive concrete pour operations.

Get Load Calculation & Quote → View KCs Certificates

Official Catalog Blueprints

System Shoring Specification & Assembly Diagrams

Exact technical drawings, member dimensions, unit weights, and shoring grid assembly layout from the SEIYON SYSTEM catalog.

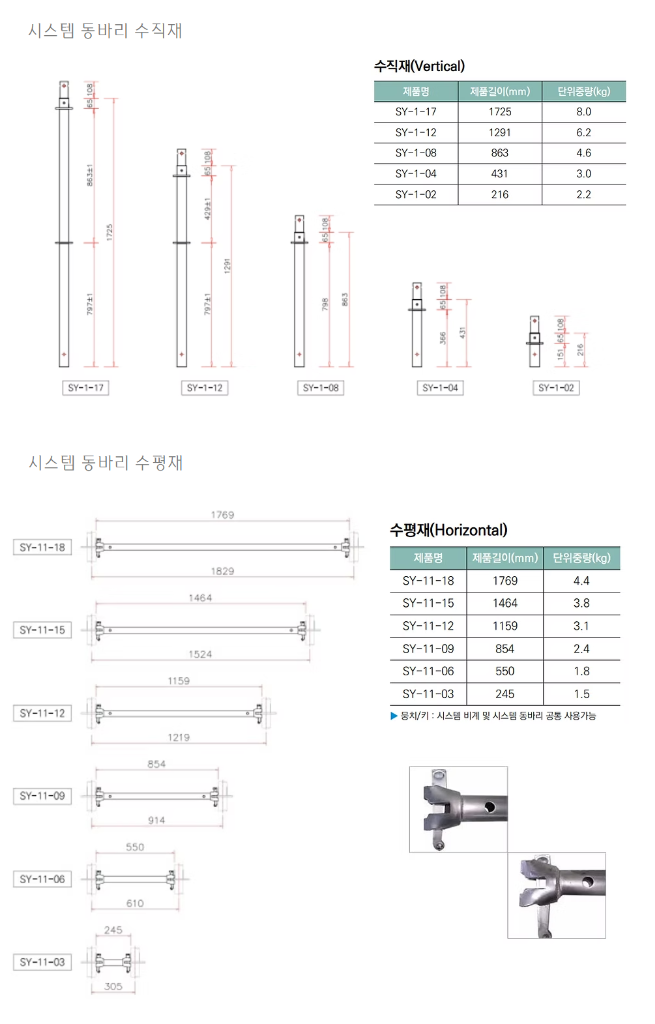

SY-1 System Shoring Vertical & Horizontal Specifications

System Shoring Spec Diagram sy-sys.co.kr

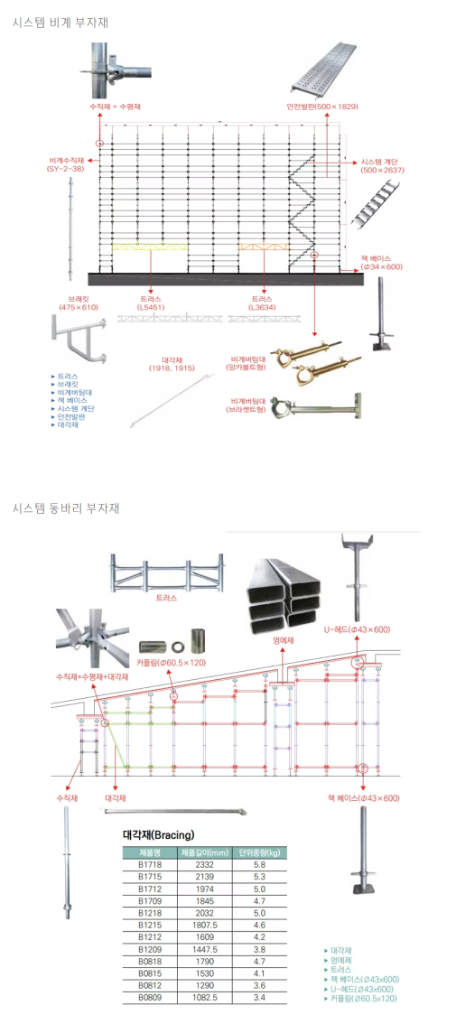

System Shoring Accessories & Formwork Support Assembly Blueprint

System Shoring Components Assembly Blueprint sy-sys.co.kr

Engineering Specifications

SY-1 Technical Specifications Matrix

Component Name	Model / Code	Outer Dia x Wall (mm)	Length / Height (mm)	Weight (kg)	Max Allowable Load
Shoring Vertical Standard (수직재)	SY-1V 3.0M / 2.0M / 1.5M / 1.0M	Ø60.5 x 2.6t ~ 3.2t (SS275)	3000 / 2000 / 1500 / 1000	16.8 / 11.2 / 8.4 / 5.6	58.8 kN per Standard
Shoring Ledger (수평재)	SY-1H 1.8M / 1.5M / 1.2M / 0.9M / 0.6M	Ø48.6 x 2.3t (SS275)	1829 / 1524 / 1219 / 914 / 610	7.5 / 6.2 / 5.0 / 3.8 / 2.6	18.5 kN Bending Load
Shoring Diagonal (가새재)	SY-1D Series	Ø42.7 x 1.8t (SS275)	2637 / 2434	7.8 / 6.8	Tension / Compression Lock
U-Head Jack (유헤드 자키)	SY-UJ 600 / 750	Ø48.0 Screw / 8t U-Plate	600L / 750L (Stroke 450)	7.8 / 9.2	75.0 kN Axial Load
Base Jack (하부 베이스 자키)	SY-BJ 600 / 750	Ø48.0 Screw / 6t Baseplate	600L / 750L (Stroke 450)	6.5 / 7.8	75.0 kN Axial Load
