Every panel shares the same frame profile and hole pattern. Length comes from the series — 1,200, 900 or 600 mm — and width from the width bar, which runs 600, 500, 450, 400, 300 and 200 mm. Eighteen standard panels cover almost any wall layout.
The frame carries a nail hole and wedge hole on every edge, tie holes through the face, and a triangular corner plate available perforated or plain.
Width bar × length bar, in millimetres.
| Width Bar | 1200 Series | 900 Series | 600 Series |
|---|---|---|---|
| 600 mm | 600 × 1,200 | 600 × 900 | 600 × 600 |
| 500 mm | 500 × 1,200 | 500 × 900 | 500 × 600 |
| 450 mm | 450 × 1,200 | 450 × 900 | 450 × 600 |
| 400 mm | 400 × 1,200 | 400 × 900 | 400 × 600 |
| 300 mm | 300 × 1,200 | 300 × 900 | 300 × 600 |
| 200 mm | 200 × 1,200 | 200 × 900 | 200 × 600 |

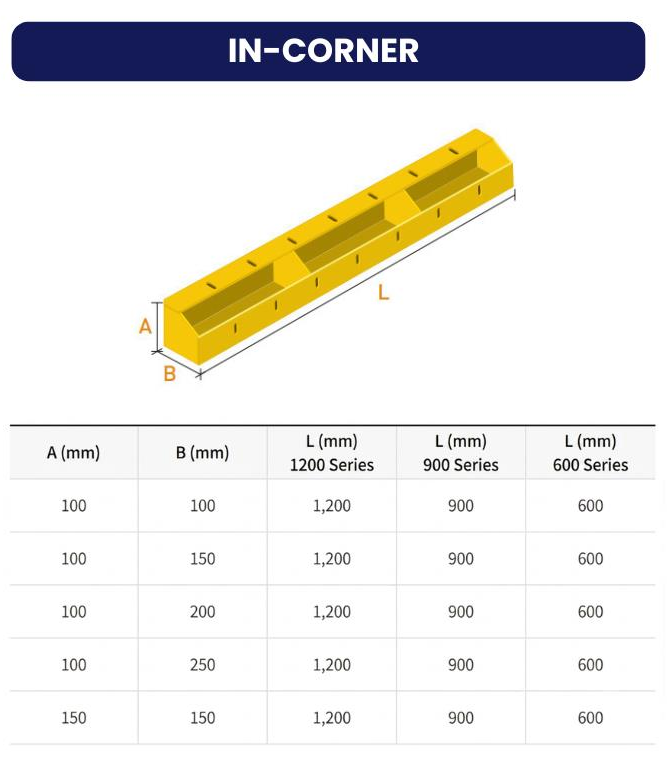

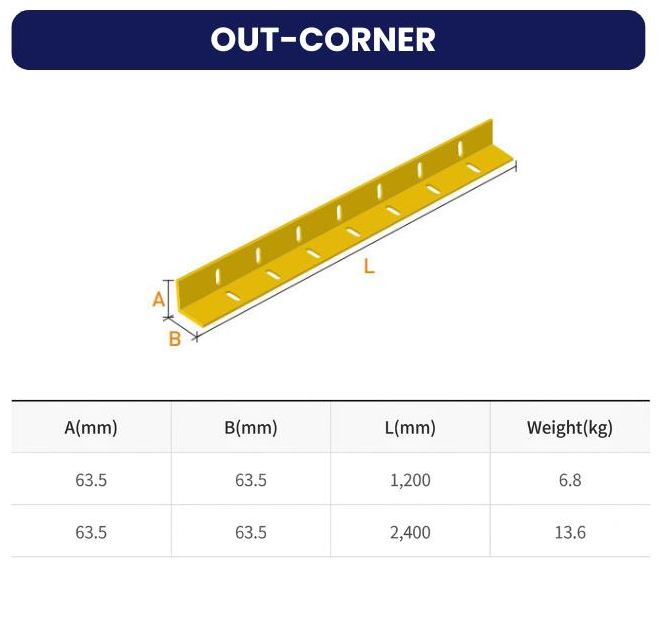

In-corners turn the form into a re-entrant angle; out-corners wrap an external edge. Both follow the same 1200 / 900 / 600 length series as the panels.
| A | B | 1200 Series | 900 Series | 600 Series |
|---|---|---|---|---|
| 100 mm | 100 mm | 1,200 | 900 | 600 |
| 100 mm | 150 mm | 1,200 | 900 | 600 |
| 100 mm | 200 mm | 1,200 | 900 | 600 |
| 100 mm | 250 mm | 1,200 | 900 | 600 |
| 150 mm | 150 mm | 1,200 | 900 | 600 |
| A | B | Length | Weight |
|---|---|---|---|
| 63.5 mm | 63.5 mm | 1,200 mm | 6.8 kg |
| 63.5 mm | 63.5 mm | 2,400 mm | 13.6 kg |

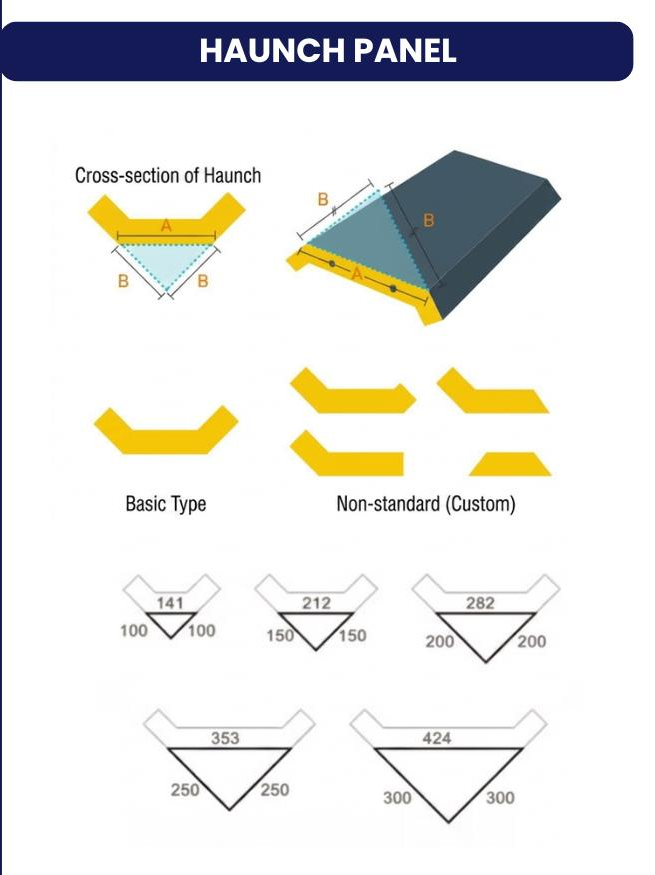

Haunch panels form the chamfer where a slab meets a beam or wall. Standard face widths are 141, 212, 282, 353 and 424 mm, formed from equal legs of 100, 150, 200, 250 and 300 mm respectively. Non-standard shapes are made to order.

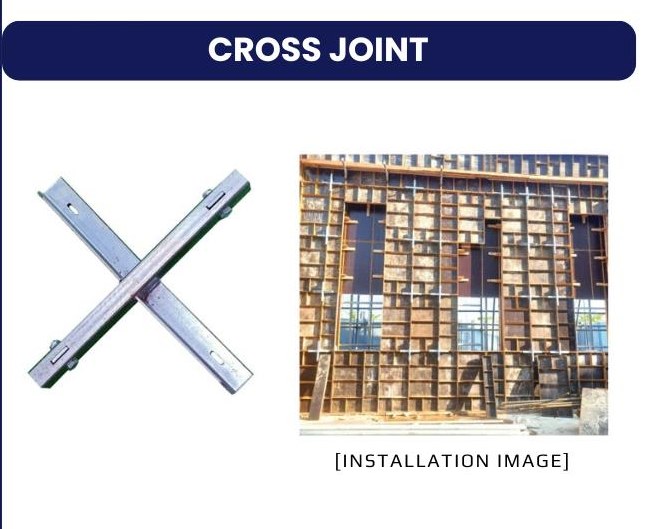

The cross joint ties panels together across a seam, holding alignment where two runs meet and spreading tie load across the frame rather than concentrating it on a single edge.
